Surface Grinding Wheel
- Description
The surface grinding wheel with excellent cutting ability and balance, aiming for grinding different kinds of materials and provide the best solution for grinding process. Well applied for each brand of surface grinding machine in market and provide complete specification、size to satisfy customers’ requirement on efficiency and cost. Besides, we also developed unique bond system to reach the requirement of forming and angle grinding process and made wheels excellent profile persistency which compare with imported wheels in efficiency.
- Manual
Horizontal spindle surface grinding wheel
Regular size of surface grinding wheel(include angle clearing)
Vertical spindle surface grinding wheel
- It is well suited for a horizontal shaft-grinding machine. Processing manners depend on a practical demand to use for surface or profile grinding.
- High Stock-Removal Ratio, High Precision and High Efficiency.
- Applicable to each type of hard-to-grind work piece (HRC25o ~ HRC64o).
Segments, cup or cylinder wheels allow greater grinding contact areas than other forms or grinding operations.

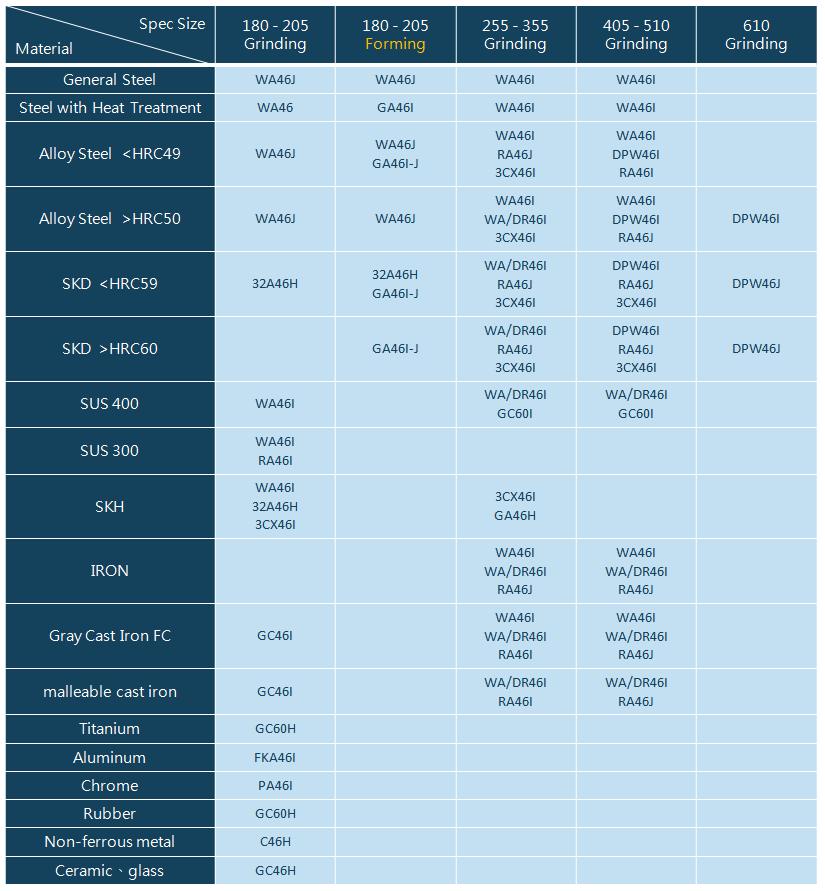

Regular specification of surface grinding wheel(include angle clearing) Size : Diameter (mm)
Regular size of surface grinding wheel(include angle clearing)
Vertical spindle surface grinding wheel
Segments, cup or cylinder wheels allow greater grinding contact areas than other forms or grinding operations.
- Carbo Vertical Shaft Surface Grinding Wheel is based on an end grinding of ring and cup wheel.
- A contact area for vertical shaft surface grinding wheel and work piece is large. The amount of stock-removal for work piece is more than other types of surface grinder, suitable for larger stock-removal work piece or mass production.
